Slimline Polycarb Awnings

The Slimline Awning is a clever modern design awning cover for applications to cover windows and doors. Slimline Awnings are made with a fully welded frame and welded brackets. The welded bracket has been designed to be fully or partially concealed (depending on frame size).

Slimline awnings come in 2 frame thicknesses. 50mm and 100mm
The frames are fully welded from our factory with a choice of powder coat colours.
Brackets are mounted to the wall and the system simply slides into the brackets.

Fully welded Frame Powder Coat Colours

Choose from a wide range of colours available from our Colorbond range.
Click here for the Colorbond Range

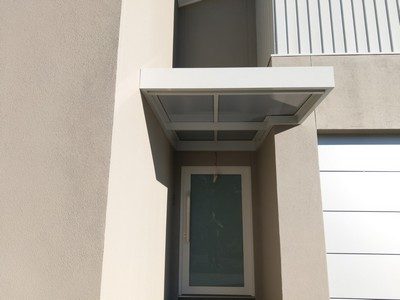

slimline window door awning

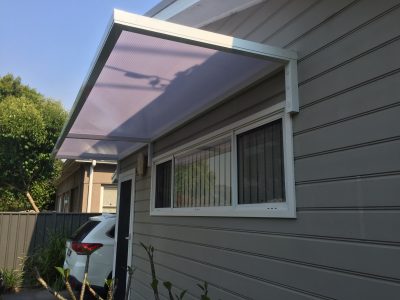

Slimline polycarb awning

Partially Concealed brackets
50mm Frames.

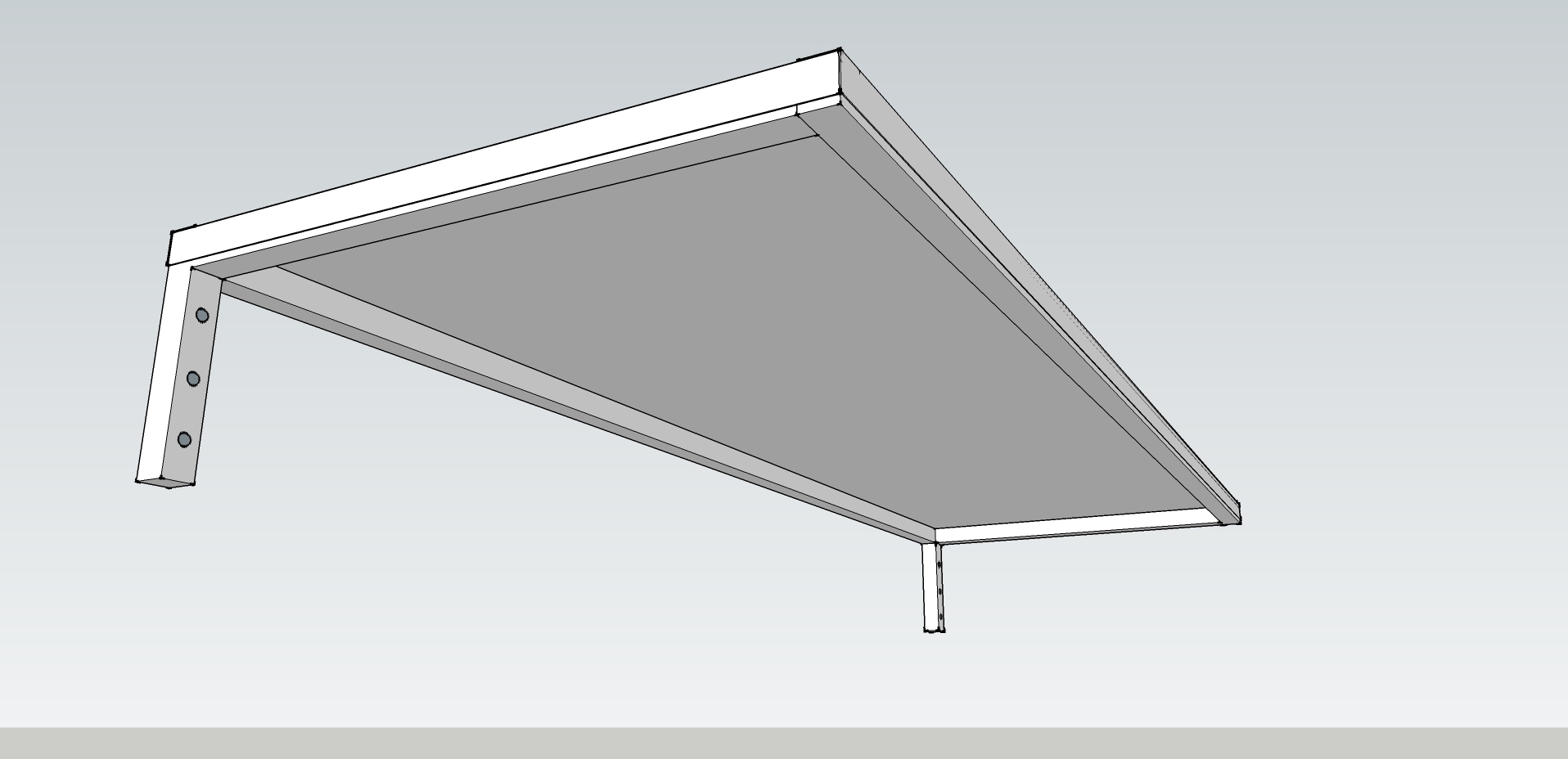

Slimline 50 Canter lever under side

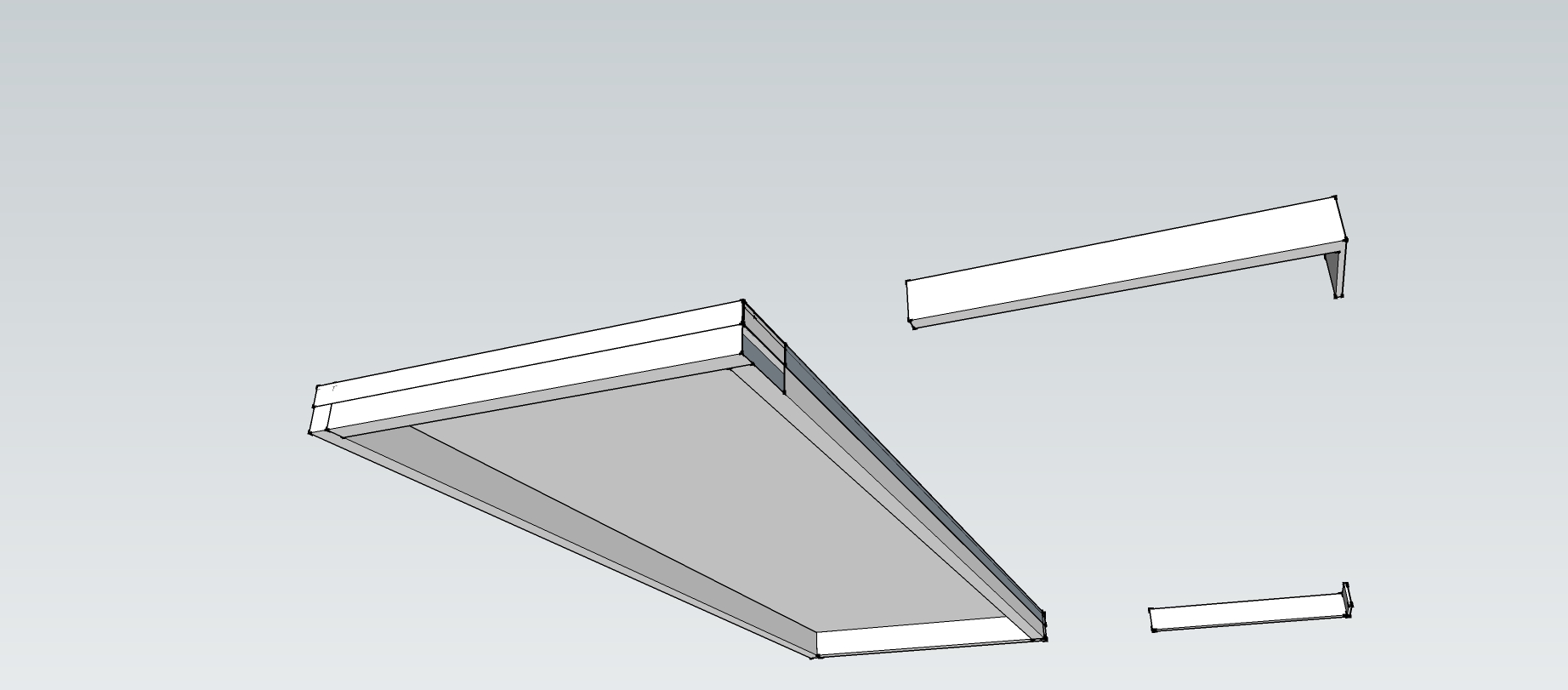

Concealed brackets
100mm  frames

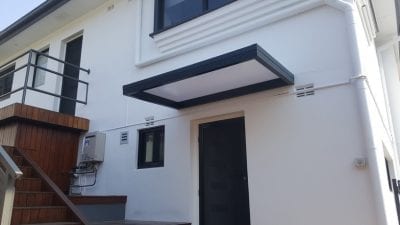

slimline 100

Click Here for Technical Info

Aluminium Frame Sizes:

Frame Size Max Projection

Frame Colours

Bracket View
50mm x 50mm 1065mm Standard Powdercoat colours Partially concealed. Designed for timber studs.
100mm x 50mm 1065mm Standard Powdercoat colours Fully concealed. Designed for brick and concrete walls.

10mm Multiwall Polycarbonate sheeting:

Sheet Colour Light Transmission Shade Coefficient
Clear 86% 0.907
Grey 9% 0.544
Bronze 22% 0.593
Platinum 11% 0.376
Opal 16% 0.394

For more details on polycarbonate sheeting, please visit www.laserlite.com.au

Mounting Brackets
